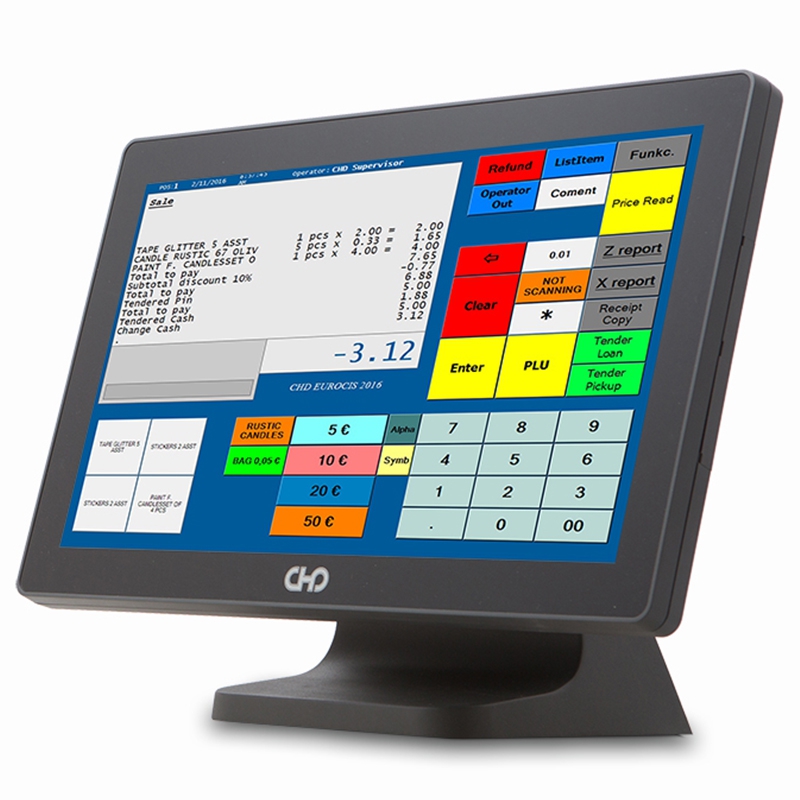

CHD 8760

All in One POS system
  • Competitive cost model
  • High-performance models with Intel ® Celeron ® Processor N3160
  • Slim housing & compact footprint design
  • Stylish modern design
  • Fanless
  • Robust Aluminum Alloy (die-casting) housing and stand
  • Easy maintenance-Quickly disassembly of POS terminal and stand
  • Various POS peripherals for all requirements
Sistēmas parametri
Operētājsistēma Windows® 10 Enterprise 2016 LTSB
CPU Intel ® Celeron ® Processor N3160
RAM 4GB, 1 x DDR3L (up to 8GB) - 1600Hz (1,35V)
HDD 64 GB SSD, expandable
Porti 4 x COM ports RJ-45 connectors (2 ports with power: 5V=green LED/12V=yellow LED, enabled by BIOS)
USB 6 x USB (2 x USB 3.0 - 4 x USB 2.0)
LAN 1 x RJ-45 (10/100/1000Mbps Giga LAN)
Audio 1 x combo (Mic & Line-out)
Naudas lāde 1 x RJ-11 (12V/24V)
DC Jack 1
Otrs monitors 1 x HDMI (12V power by DC-jack, enabled in BIOS)
Fiziskie parametri
Modulārs / viengabala All in one
Ekrāna izmērs 18.5" LED LCD
Izšķirtspēja 1366 x 768
Svars 6,9kg
Izmēri 470 x 200 x 350 mm
Barošana DC 90W, 19V, 4,74A
Darbības temperatūra 0°C to +60°C
Vides mitrums 20% to 80% RH non-condensing
Audio 2 x 2W
Pie sienas stiprināms 70mm x 70mm & 100mm x 100mm VESA mounting hole for panel PC type
Sertifikāts FCC, CE
Displejs
Tips Projected Capacitive with 10 touch points
Gaišums 300 cd/m²
Opcijas
Customer display 2x20 VFD or 10.1 , 14" or 15" Second LCD Display with or without touch (option)
i-button Option
Pirksta nospieduma lasītājs 1 (USB) (option)
MSR 3 Tracks MSR USB (option)
